USS control and signalling modules: DO IT YOURSELF!

Sometimes it's better to leave certain things to the pros, sometimes it's just a few clicks and you're done and no help is needed. One example is our USS control and signalling modules that meet this requirement.

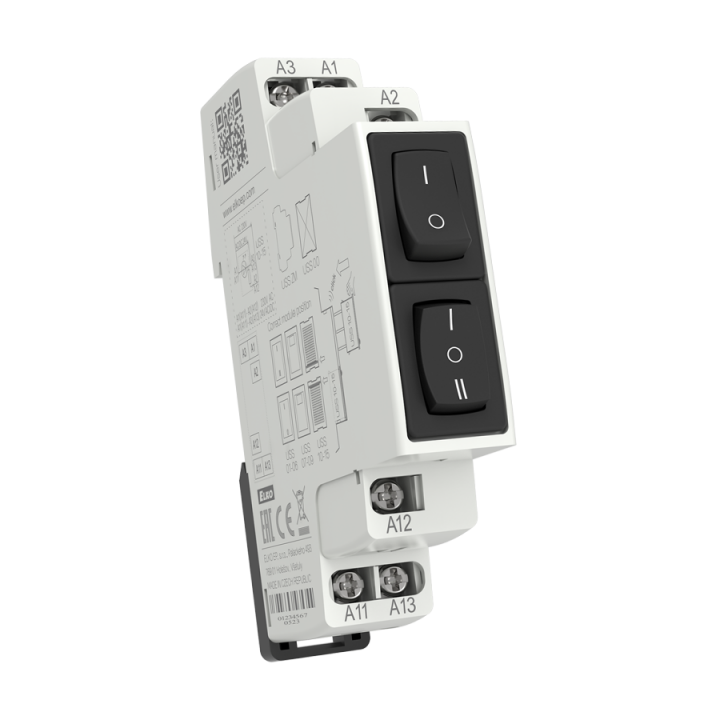

As the abbreviation of the module name implies, it is entirely up to you how you combine them.  The USS is based on the original form, but thanks to the innovative solution, their installation is easier. The basis is a box in a 1-MODULE version, which is mounted on a DIN rail. You can fit up to 2 positions of units from our offer (switches, buttons and indicators that flash or light up permanently), thus saving space in the switchboard compared to competing products.

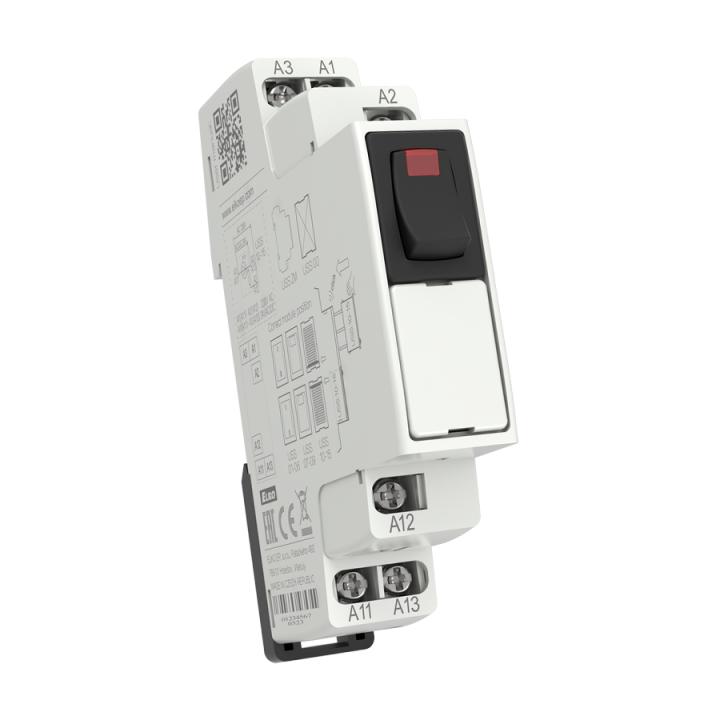

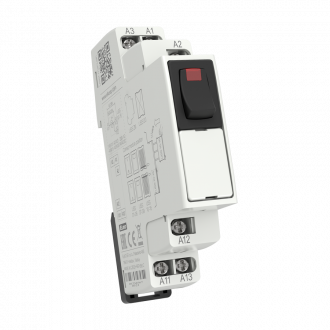

The units are supplied as standard separately in 16 types, the configuration of which you can determine yourself. Switches and pushbuttons meet high demands on switching frequency and contact quality. You can control the switching and signalling in one unit thanks to the plug switch. Bright luminosity thanks to the SMD LED diode, which evenly illuminates the area of ​​the clear signal light with its colour, has a permanently lit and flashing signal light. And if you don't fit the module with two units, the blanking plug will serve well to blind the position in the front panel of the USS module.

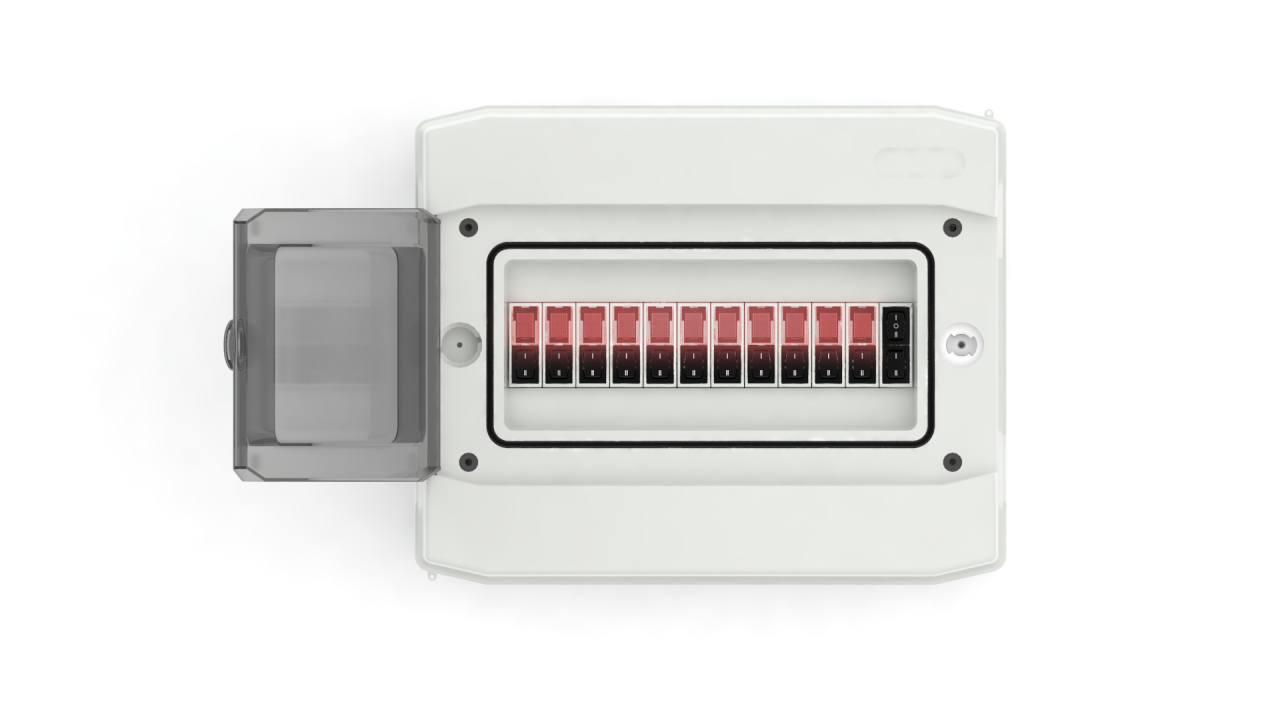

Thanks to the two unit connection, you can control up to 24 different circuits on 12 of our modules. Quick installation and clean design is also a plus.

Technical parameters

  • Rated current / voltage:
    USS-01USS-04USS-05: 6 A / 250 V AC
    USS-02USS-03USS-06/S, USS-06/R: 10 A / 250 V AC
  • supply voltage of AC 230 V signals (A1-A2) or AC / DC 24 V signals (A1-A3)
  • operating temperature range of the device -20 ... + 55 ° C
  • clamp calipers, screw M3 combination head, pozidrive 1
  • 1-MODULE version, DIN rail mounting
